Amytracker

Amytracker are small fluorescent molecules for detection of protein aggregates.

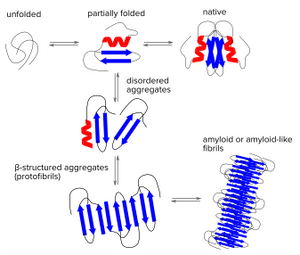

Five Amytracker variants are available. All Amytracker variants are designed to bind to the Congo red binding pocket on the amyloid fibril. A minimum of eight in-register parallel-β-strands are required for binding. The Amytracker variants differ in affinity and spectral properties. As Amytracker are structural markers, you can achieve reliable fluorescent labeling of amyloids derived from a variety of amyloidogenic proteins or peptides from different species.

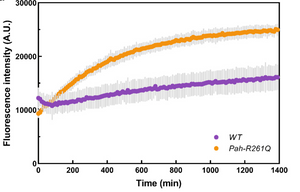

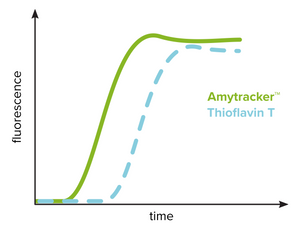

Amytracker are suitable for detecting amyloids in fresh or fixed tissue sections and cells. It is possible to use them for fibrillation assays and for systemic injection in vivo. They are exceptionally photo- and thermostable and allow for easy handling in any application. Amytracker work in a wide range of salt and pH conditions. When the pH is altered during the experiment, pH controls should be included. Amytracker can be used with fluorescence plate readers, fluorescence microscopes and confocal laser scanning microscopes, fluorescence life time imaging, fluorescence cytometry, Total internal reflection fluorescence (TIRF) microscopy and Multiphoton microscopy.

Store your Amytracker product in the fridge and use the opened container within 12 months. Amytracker is for research use only and is not for resale.

Amytracker Mix&Try

Amytracker Mix&Try is our recommended option for starting out with using Amytracker. It contains 10 µL of each variant. Testing the variants will allow you to determine which Amytracker is best suited for your experiments and available instruments.

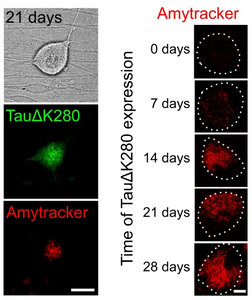

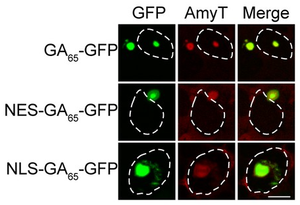

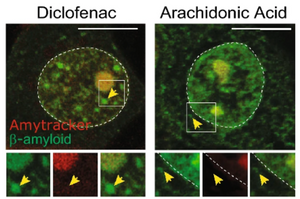

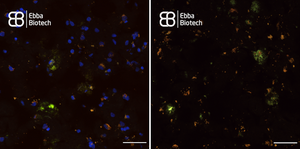

All Amytracker variants label Aβ plaques and neurofibrillary tangles in tissue sections with AD pathology and α-synuclein aggregates in tissue sections with PD pathology. The optotracers are exceptionally photostable and fluorogenic. The variants differ with regards to affinity, cellular uptake and excitation and emission wavelengths (see Table below). When bound to a target, Amytracker can be imaged using epifluorescence, confocal and superresolution microscopy. Spectral information can be acquired using a fluorescence spectrophotometer. Contact us to learn more about Amytracker applications.

Table: Excitation- and emission wavelengths as well as recommended filter sets.
Exmax Emmax Recommended filter-sets
Amytracker 480 420 nm 480 nm DAPI
Amytracker 520 460 nm 520 nm FITC, GFP
Amytracker 540 480 nm 540 nm FITC, GFP, YFP
Amytracker 630 520 nm 630 nm PI, Cy3, TxRed, mCherry, Cy3.5
Amytracker 680 530 nm 680 nm PI, mCherry, Cy3.5
contact us for custom options.
Amytracker 680

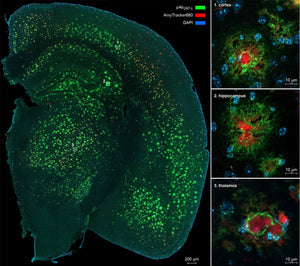

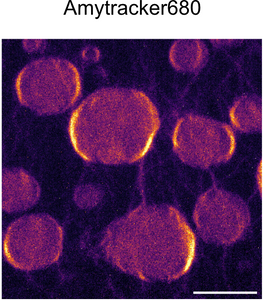

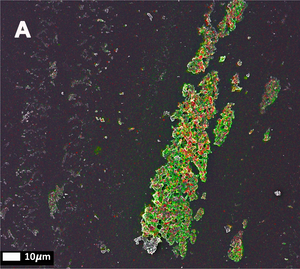

Amytracker 680 is our red optotracer for labeling protein aggregates with repetitive arrangement of β-sheets. It labels Aβ plaques and neurofibrillary tangles in tissue sections with AD pathology and α-synuclein aggregates in tissue sections with PD pathology. Specifically, Amytracker 680 has been used to study amyloid formation during abnormal coagulation, Lewy body formation in a seeding based neuronal model, accumulation of misfolded proteins in the nucleolus and intracerebral formation of Aβ plaques using multiphoton microscopy. Contact us to learn more about Amytracker applications.

As all our optotracers, Amytracker 680 is exceptionally photostable and fluorogenic. When bound to a target, Amytracker 680 can be imaged using epifluorescence, confocal and superresolution microscopy. Spectral information can be acquired using a fluorescence spectrophotometer. Use recommended filter sets as well as excitation- and emission wavelengths according to the following table.

Table: Excitation- and emission wavelengths as well as recommended filter sets.
Exmax Emmax Recommended filter-sets
Amytracker 680 530 nm 680 nm PI, mCherry, Cy3.5


Amytracker 680 is available in four different formulations (See volumes and prices in the drop-down list below):

  • Aqueous: 1 mg/ml solution in ultrapure water. The product should be diluted 1:1000 before use. For use in live-cells, sometimes 1:500 is necessary due to uptake limitations. To prevent evaporation of the aqueous solvent, close the container carefully after use, spin down liquid and use up small volumes quickly.
  • DMSO: 1 mg/ml solution in DMSO to prevent solvent evaporation. The product should be diluted 1:1000 before use. For use in live-cells, sometimes 1:500 is necessary due to uptake limitations.
  • Solid: 1 mg solid lyophilised in a sterile injection bottle. We recommend dilution to 4 mg/ml in physiological saline followed by intravenous injection with a total dose of 5 mg/KG.
  • Drop&Shine: 5 ml ready-to-use product in mounting medium. Ideal for use in tissue sections. Add a some Drop&Shine and mount your slide to detect amyloids within minutes.
contact us for custom options.
Amytracker 630

Amytracker 630 is our orange optotracer for labeling protein aggregates with repetitive arrangement of β-sheets. It labels Aβ plaques and neurofibrillary tangles in tissue sections with AD pathology and α-synuclein aggregates in tissue sections with PD pathology. Contact us to learn more about Amytracker applications.

As all our optotracers, Amytracker 630 is exceptionally photostable and fluorogenic. When bound to a target, Amytracker 630 can be imaged using epifluorescence, confocal and superresolution microscopy. Spectral information can be acquired using a fluorescence spectrophotometer. Use recommended filter sets as well as excitation- and emission wavelengths according to the following table.

Table: Excitation- and emission wavelengths as well as recommended filter sets.
Exmax Emmax Recommended filter-sets
Amytracker 630 520 nm 630 nm PI, Cy3, TxRed, mCherry, Cy3.5


Amytracker 630 is available as 1 mg/ml solution in ultrapure water (Aqueous) with volumes ranging from 10 - 200 µL (See volumes and prices in the drop-down list below). The product should be diluted 1:1000 before use. For use in live-cells, sometimes 1:500 is necessary due to uptake limitations. To prevent evaporation of the aqueous solvent, close the container carefully after use, spin down liquid and use up small volumes quickly.

contact us for custom options.
Amytracker 540

Amytracker 540 is our yellow optotracer for labeling protein aggregates with repetitive arrangement of β-sheets. It labels Aβ plaques and neurofibrillary tangles in tissue sections with AD pathology and α-synuclein aggregates in tissue sections with PD pathology. Contact us to learn more about Amytracker applications.

As all our optotracers, Amytracker 540 is exceptionally photostable and fluorogenic. When bound to a target, Amytracker 540 can be imaged using epifluorescence, confocal and superresolution microscopy. Spectral information can be acquired using a fluorescence spectrophotometer. Use recommended filter sets as well as excitation- and emission wavelengths according to the following table.

Table: Excitation- and emission wavelengths as well as recommended filter sets.
Exmax Emmax Recommended filter-sets
Amytracker 540 480 nm 540 nm FITC, GFP, YFP


Amytracker 540 is available as 1 mg/ml solution in ultrapure water (Aqueous) with volumes ranging from 10 - 200 µL (See volumes and prices in the drop-down list below). The product should be diluted 1:1000 before use. For use in live-cells, sometimes 1:500 is necessary due to uptake limitations. To prevent evaporation of the aqueous solvent, close the container carefully after use, spin down liquid and use up small volumes quickly.

contact us for custom options.
Amytracker 520

Amytracker 520 is our green optotracer for labeling protein aggregates with repetitive arrangement of β-sheets. It labels Aβ plaques and neurofibrillary tangles in tissue sections with AD pathology and α-synuclein aggregates in tissue sections with PD pathology. Contact us to learn more about Amytracker applications.

As all our optotracers, Amytracker 520 is exceptionally photostable and fluorogenic. When bound to a target, Amytracker 520 can be imaged using epifluorescence, confocal and superresolution microscopy. Spectral information can be acquired using a fluorescence spectrophotometer. Use recommended filter sets as well as excitation- and emission wavelengths according to the following table.

Table: Excitation- and emission wavelengths as well as recommended filter sets.
Exmax Emmax Recommended filter-sets
Amytracker 520 460 nm 520 nm FITC, GFP


Amytracker 520 is available as 1 mg/ml solution in ultrapure water (Aqueous) with volumes ranging from 10 - 200 µL (See volumes and prices in the drop-down list below). The product should be diluted 1:1000 before use. For use in live-cells, sometimes 1:500 is necessary due to uptake limitations. To prevent evaporation of the aqueous solvent, close the container carefully after use, spin down liquid and use up small volumes quickly.

contact us for custom options.
Amytracker 480

Amytracker 480 is our blue optotracer for labeling protein aggregates with repetitive arrangement of β-sheets. It labels Aβ plaques and neurofibrillary tangles in tissue sections with AD pathology and α-synuclein aggregates in tissue sections with PD pathology. Specifically, Amytracker 480 has been used to study amyloid formation during abnormal coagulation. Contact us to learn more about Amytracker applications.

As all our optotracers, Amytracker 480 is exceptionally photostable and fluorogenic. When bound to a target, Amytracker 480 can be imaged using epifluorescence, confocal and superresolution microscopy. Spectral information can be acquired using a fluorescence spectrophotometer. Use recommended filter sets as well as excitation- and emission wavelengths according to the following table.

Table: Excitation- and emission wavelengths as well as recommended filter sets.
Exmax Emmax Recommended filter-sets
Amytracker 480 420 nm 480 nm DAPI


Amytracker 480 is available as 1 mg/ml solution in ultrapure water (Aqueous) with volumes ranging from 10 - 200 µL (See volumes and prices in the drop-down list below). The product should be diluted 1:1000 before use. For use in live-cells, sometimes 1:500 is necessary due to uptake limitations. To prevent evaporation of the aqueous solvent, close the container carefully after use, spin down liquid and use up small volumes quickly.

contact us for custom options.
